Aluminium Glazing and Your AC Setpoint: Why the Glass Decides

Your cooling setpoint is partly a glazing decision because people feel operative temperature, not air temperature. ASHRAE Standard 55 defines operative temperature as a blend of the room air and the mean radiant temperature of the surfaces around you, and in still air it weights them equally. A hot inner pane raises the radiant half. The thermostat only reads the air, so the person sitting beside the glass turns it down to compensate.

In the worked example below, built on Lawrence Berkeley National Laboratory’s published glass-surface temperatures, a seat one metre from a sunlit sliding door needs the air about 1.4 °C cooler behind body-tinted glass and about 0.5 °C cooler behind spectrally selective low-E glass to feel like 24 °C. DEWA puts each degree of setpoint at up to 5% of AC consumption. On those figures the glass, not the occupant, sets part of the cooling bill.

This guide is written for the villa owner who keeps turning the thermostat down and still feels warm by the window, and for the architect who has to choose glass that lets a 24 °C setpoint actually feel like 24 °C.

Why does a room feel warm at 24 °C?

Your body exchanges heat with the air by convection and with every surface it can see by long-wave radiation. ASHRAE Standard 55 combines the two into operative temperature, t_o = A·t_a + (1 − A)·t_r, where t_a is the air temperature and t_r the mean radiant temperature. Below an air speed of 0.2 m/s, A is 0.5. The standard lets you take the simple mean when occupants are seated or lightly active (1.0–1.3 met), are not in direct sunlight, and the radiant and air temperatures are within 4 °C of each other.

So a room whose air is held at 24 °C but whose surroundings radiate at 26 °C feels like 25 °C. In a Dubai villa the walls and ceiling of an air-conditioned room sit close to the air temperature. The surface that does not is the glass. A large aluminium sliding door is often the warmest surface in the room, and it is usually where the sofa is.

A wall thermostat responds to the air around it. It cannot see the warm pane, so the setpoint ends up carrying an error the glass created.

How hot does the inside of the glass get?

Hotter than most people expect, and the reason is the solar energy the glass absorbs, more than the heat it conducts. Lyons and Arasteh of Lawrence Berkeley National Laboratory (LBNL) modelled ten generic glazings in WINDOW 4.1 under standard ASHRAE summer conditions: 31.7 °C outdoors, 23.9 °C indoors, and 783 W/m² of sun on the facade. Their inside-surface temperatures include:

Source: Lyons & Arasteh, LBNL-44032, Table 1. Centre-of-glass values; frames excluded.

Two findings stand out. First, U-value is a poor predictor. The pyrolytic low-E unit and its reversed twin have the same U-factor, 1.73 W/m²K, yet their inner surfaces differ by 6.2 K, because one coating sheds solar energy before it reaches the inner pane and the other absorbs it there. Second, body-tinted glass trades transmitted heat for absorbed heat, and the absorbed heat runs hot on the room side. LBNL’s own conclusion: discomfort is “mostly uncorrelated with U-factor but is closely related to SHGC; some low-E double-pane windows result in as much discomfort as uncoated single-pane windows.”

Dubai is harsher than the ASHRAE test day. The 2025 ASHRAE design dry bulb for Dubai International is 43.5 °C, almost 12 K above the 31.7 °C test condition, so on a design day every surface in that table runs hotter. The ranking is the useful part. Coating position is explained in our guide to low-E glass in the UAE.

How much does the glass move the setpoint?

For a seat close to a large door, the difference between glazings is close to a full degree. To show it we ran a worked example. Every assumption is stated so that it can be checked.

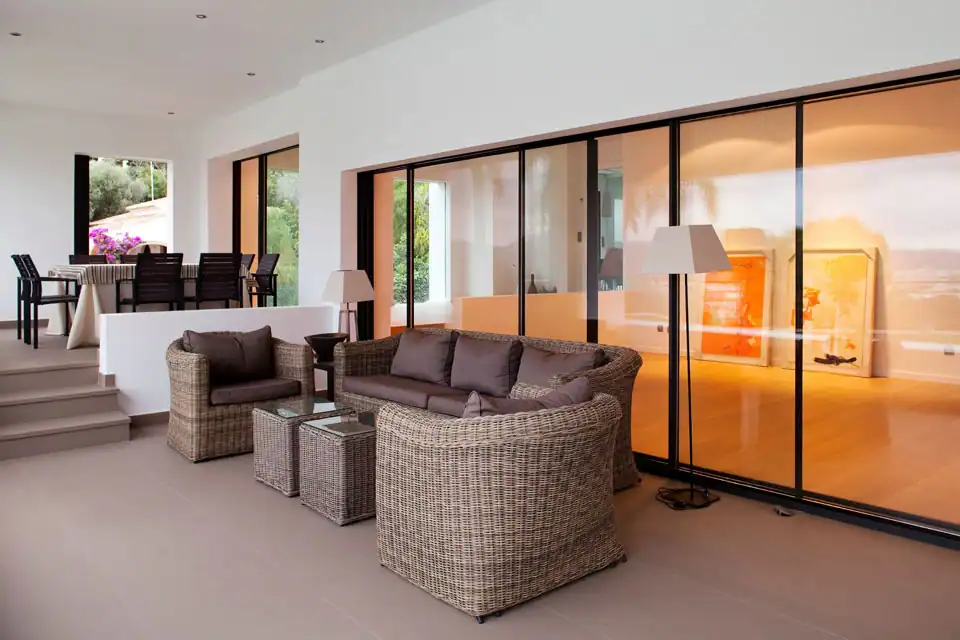

• Geometry: a seated occupant 1 m from a 2.4 m × 2.4 m glazed sliding door, centred on it, at 0.9 m above the floor (the height LBNL used). Treating the occupant as a sphere, as a globe thermometer does, the door fills 19% of the radiant surroundings (calculated from the solid angle of the rectangle).
• Surfaces: walls, floor and ceiling at air temperature; glass at the LBNL summer value above, held constant as the air is lowered (a slight simplification).
• Comfort target: an operative temperature of 24 °C, DEWA’s recommended setpoint. Still air (A = 0.5). Occupant in shade.

Moving from body-tinted single glazing to a selective low-E double-glazed unit recovers about 0.9 K of setpoint at that seat. The effect falls off with distance. On the same geometry the door’s share of the radiant field drops to about 12% at 1.5 m and 8% at 2 m. But nobody arranges a living room so the seats sit 2 m from the view. The furniture goes against the glass, and the setpoint gets chosen there.

Every case stays inside ASHRAE 55’s 4 °C radiant-to-air limit, so the simple mean is valid. The example is deliberately conservative in one respect: it holds the occupant out of the sun.

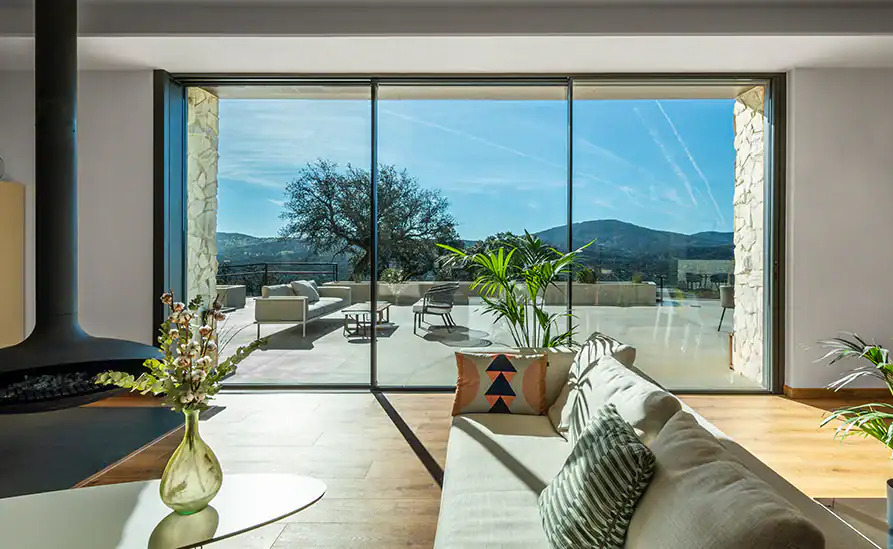

What happens when the sun reaches the seat?

Direct sun is a bigger effect, and the thermostat cannot correct it at all. ASHRAE 55’s simple method excludes occupants in direct sunlight for that reason. LBNL quantified it: the predicted mean vote (PMV) of thermal sensation rises by about 0.0024 per W/m² of transmitted sun on the body. Across their benchmark glazings that worked out to a PMV increase of about 2.2 for single clear glass down to 0.6 for a high-performance window. On ASHRAE’s seven-point scale, +1 is “slightly warm” and +2 is “warm”.

No reasonable setpoint cancels a two-point shift. The occupant drops the thermostat as far as it goes, the rest of the villa is overcooled, and the seat in the sun is still uncomfortable. That load has to be removed before it enters the room, through low solar transmittance glass and external shading. Our comparison of solar-control glazing and external shading sets out which does more on each elevation.

What is one degree of setpoint worth on a DEWA bill?

DEWA advises keeping the thermostat at 24 °C or higher and states that each degree of increase can save up to 5% of AC consumption. It also puts air conditioning at 60–70% of residential electricity use in the summer months. Independent modelling points the same way. Hoyt, Arens and Zhang (UC Berkeley, 2015) simulated raising the cooling setpoint from 22.2 °C to 25 °C in US office buildings and found an average saving of 29% of cooling energy. That is a different building type, but it confirms the order of magnitude.

A worked example, with the assumptions stated:

• A villa using 7,000 kWh in a summer month (an assumption, not a typical figure).
• Air conditioning at 65% of that, the midpoint of DEWA’s 60–70%: 4,550 kWh.
• A 0.9 K setpoint recovery, from the table above, at DEWA’s upper bound of 5% per degree: about 205 kWh.
• DEWA’s residential slab tariff charges 23, 28, 32 and 38 fils/kWh at 2,000, 4,000, 6,000 and above. The saving comes off the top of the bill, here the 38-fils slab, so about AED 78 a month in energy charge, before the monthly fuel surcharge and 5% VAT.

That is a meaningful number, but not a dramatic one, and we would rather say so. It is an upper bound, and it depends on the whole household accepting the higher setpoint. The stronger case is comfort. Glass that keeps the inner pane close to room temperature lets 24 °C feel like 24 °C at the seat by the window. That is what stops the setpoint drifting down through the summer. The larger, plant-level effect of the same glazing decision is covered in our piece on glazing and AC plant sizing.

Which glazing specification lets a villa hold 24 °C?

Specify for a cool inner pane, not just a low U-value. In practice:

1. Low SHGC from a spectrally selective coating. In LBNL’s set, the selective low-E unit (SHGC 0.41) had the coolest inner pane of any summer case. Modern triple-silver coatings go considerably lower. Al Sa’fat sets the ceiling for villas as a shading coefficient of 0.40 at Silver Sa’fa (roughly SHGC 0.35), as covered in our Al Sa’fat glazing guide.
2. Coating on surface 2. The same coating on the inner pane ran 6.2 K hotter in LBNL’s results. Put the surface number on the glass schedule. A description alone does not fix it.
3. Avoid relying on body tint. Tinted glass lowers SHGC by absorbing the sun, and the absorbed heat reaches the room as a warm pane. The bronze unit was the second-hottest surface in the table.
4. A thermally broken frame. The frame is part of the radiant surroundings too. An unbroken aluminium section conducts outdoor heat straight to its room-side face. Specify a thermally broken system for every conditioned room. The systems are listed on our aluminium windows page, and the polyamide break is explained in our thermal break guide.
5. External shading where sun reaches seating. On west elevations, no glass alone fully removes direct-beam discomfort at the seat.
6. Keep the setpoint sensible. A cool inner pane also lets you avoid over-cooling, which in Dubai’s humidity is the usual cause of room-side condensation. See our guide to condensation on aluminium windows.

For large openings, such as the slim-sightline systems in our aluminium sliding doors range, the glass make-up deserves the same scrutiny as the profile. Sightline and glass area are a design choice. Inner-pane temperature is the specification that decides whether the seats beside them get used.

Frequently asked questions

Why does my villa feel warm even with the AC at 24 °C?

Because comfort depends on operative temperature, which ASHRAE 55 weights equally between air temperature and the mean radiant temperature of surrounding surfaces in still air. A sunlit pane can run well above room temperature. LBNL modelled summer inner-glass temperatures up to 37 °C in a 23.9 °C room. Near a large door that adds a degree or more to how warm the room feels, and the thermostat cannot see it.

Does a lower U-value keep the inside of the glass cooler in Dubai?

Not on its own. In LBNL’s results, two units with the same U-factor of 1.73 W/m²K had inner surfaces 6.2 K apart in summer, depending only on which pane carried the low-E coating. In a hot climate, solar absorption and SHGC govern the inner-pane temperature more than U-value does.

How much does raising the AC setpoint by one degree save in Dubai?

DEWA states that each degree of increase can save up to 5% of AC consumption, and recommends 24 °C or higher. The saving is taken from your highest tariff slab first, so it is worth most in the summer months when consumption is highest.

Is tinted glass a good way to keep a Dubai room cool?

It is a weak one. Body tint lowers solar gain by absorbing it, so the glass itself heats up and radiates into the room. LBNL modelled single bronze glass at 37.0 °C on the room side in summer, against 28.3 °C for a spectrally selective low-E unit. Selective coatings reject solar heat while keeping the pane cooler and the room brighter.

Which surface should the low-E coating be on for comfort?

Surface 2, the inner face of the outer pane. With the coating there, solar energy is rejected before it reaches the inner pane. In LBNL’s comparison the same coating on the inner pane gave a room-side surface 6.2 K hotter.

Will better glazing let me set the AC higher?

At the seats near the glass, yes. In our worked example, moving from body-tinted single glazing to selective low-E double glazing recovers about 0.9 K of setpoint for an occupant 1 m from a 2.4 m door at the same perceived comfort. Seats in direct sun also need external shading or very low solar transmittance glass, because no setpoint offsets direct-beam heat on the body.

Specify the glass for the seat, not just the schedule

The thermostat is where the cooling bill gets set, and in a glazed villa it is set by whoever sits next to the glass. Specifying the coating, its surface and the frame for a cool inner pane is how a 24 °C setpoint stays at 24 °C through August. If you are specifying glazing for a villa or replacing it, our technical team can review the glass schedule against each elevation and the seating plan. Arrange a specification conversation.

Sources

• ASHRAE, Addendum c to Standard 55-2013, Normative Appendix A: operative temperature, weighting factor A, and the conditions for the simple mean.
• Lyons, P. & Arasteh, D., Window Performance for Human Thermal Comfort, LBNL-44032, ASHRAE Winter Meeting 2000. Table 1 inside-surface temperatures, Table 2 conditions, d(PMV)/dq.
• DEWA, Cooling: sustainability and conservation, the 24 °C recommendation and “up to 5%” per degree. Reported in Gulf News.
• Emirates 24|7, Dubai AC costs explained (20 August 2026), citing DEWA: AC at 60–70% of residential summer electricity use.
• DEWA, Slab tariff, residential electricity: 23 / 28 / 32 / 38 fils/kWh.
• Hoyt, T., Arens, E. & Zhang, H. (2015), Extending air temperature setpoints: simulated energy savings and design considerations for new and retrofit buildings, Building and Environment 88, 89–96.
• ASHRAE Handbook, Fundamentals (2025), climatic design conditions for Dubai International (WMO 411940): 0.4% cooling dry bulb 43.5 °C. Via climate.onebuilding.org.
• Al Sa’fat, Dubai Green Building System, 2nd edition (January 2023), Table 501.01(2): villa glazing SC 0.40 max (Silver Sa’fa).
