Aluminium Pivot Doors Dubai
Statement pivot entrance doors for villas and commercial entries. Cortizo Millennium Plus Pivot — centre or offset axis, oversized formats up to 3 m+ height.
A pivot door rotates on a vertical axis rather than swinging on hinges — letting you specify door leaves bigger than a hinged door can physically support, with a cleaner sightline at the frame edge. For statement UAE villa entrances, pivot is the architectural specification of choice.
Best for Oversized Villa Entrances
Doors above 2.4 m height — formats that hinges can’t mechanically support. Cortizo Millennium Plus is the lead spec.

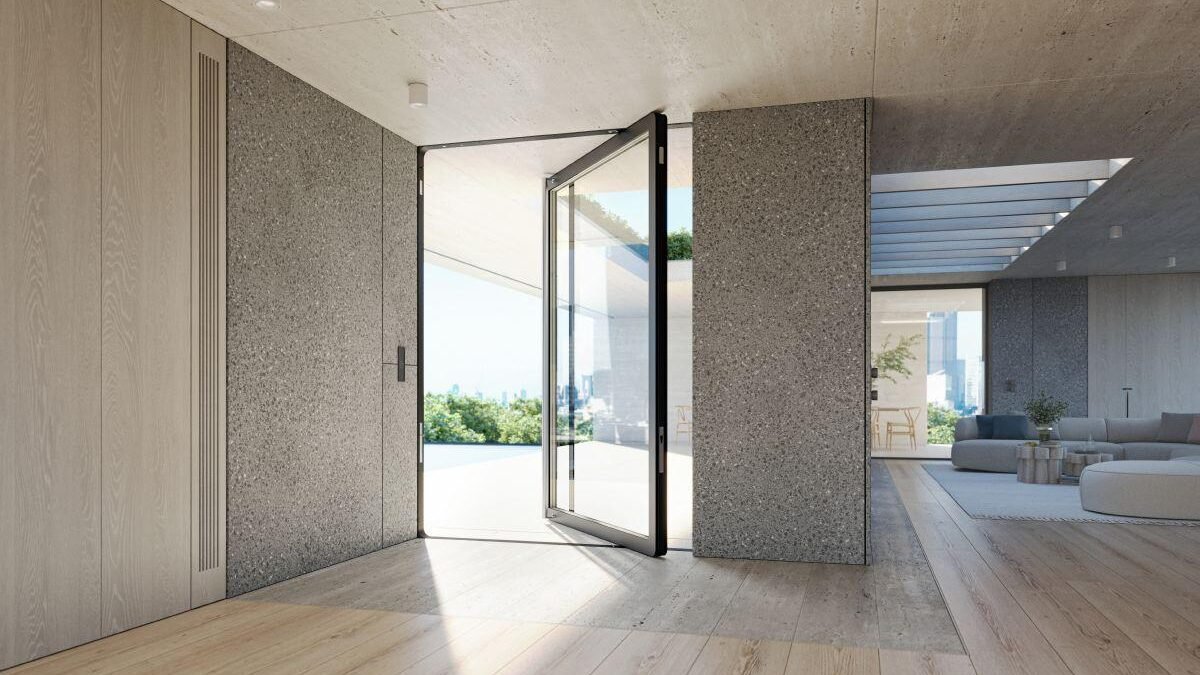

Cortizo Millennium Plus Pivot (Centre)
CortizoCentre-pivot configuration — symmetrical opening, architectural anchor on the elevation. Up to 3 m+ height.
Cortizo Millennium Plus Pivot (Offset)
CortizoOffset axis — opens like a hinged door but supports larger panels than hinges can take. The standard pivot configuration.
Best for Heavy-Use Commercial Pivot
When pivot meets daily commercial traffic — reinforced hardware, self-closing.
Schüco ADS HD Pivot
SchücoSchüco’s heavy-duty pivot — reinforced bearings, self-closing standard. The right pivot for commercial entries with high-traffic specification.
Not sure which system is right for your project?
Send us your drawings or browse the full system catalogue side-by-side in the LAA aluminium glazing specification tool. Quote returned in AED within 48 hours.
Browse the Spec Tool →You may also be interested in
Related aluminium glazing categories from the LAA Dubai range.
Frequently Asked Questions
When the door size exceeds what hinges can mechanically support — typically 2.4 m height or 1.4 m width upwards. Pivot is also specified for the architectural aesthetic: slimmer visible frame, more glass area, the visual drama of an oversized format. For standard-size villa entrances, hinged is usually the better answer.
A floor-mounted hydraulic closer requires a recessed cavity in the finished floor at the door’s pivot point. Needs coordination with main contractor + finishing contractor at structural-drawing stage. We will provide the dimensioned floor-cavity detail on receipt of the architect’s drawings.
Yes — Cortizo Millennium Plus Pivot is available with RC2 (and RC3 on certain configurations) multi-point locking. The pivot mechanism locks at top + bottom pivot pins plus the side lock points — three security touchpoints vs the two on a standard hinged door.
Up to about 3 m height × 1.6 m width per leaf with the Cortizo Millennium Plus Pivot. At this scale the constraint is glass weight + structural load on the surrounding opening — we confirm feasibility per project after the architect’s elevation drawing.
Two main trade-offs. Weatherproofing — a pivot door doesn’t produce a fully-sealed perimeter seal the way a hinged door with a low-profile threshold can. Floor preparation — the hydraulic closer cavity requires structural-stage planning. For internal villa entrances both trade-offs are usually minor.
