Aluminium Doors Over 3 m: Engineering Oversized Glazing in Dubai

An aluminium door leaf can be engineered well past 3 m, and in the right system past 5 m — but the limit is almost never the aluminium. Four things decide how large a leaf can go: the weight of the glass, the duty rating of the hardware carrying it, the wind pressure the panel has to resist, and the deflection of the structure above the opening. In practice the last of those stops more projects than the other three combined, because Dubai’s building regulations allow a slab or beam to deflect by up to L/480, while the door beneath it needs its whole head to move by less than 3 mm.

This guide sets out the real constraint chain for oversized aluminium glazing on a UAE villa: what each system can carry, how to weigh a leaf before you specify it, and what belongs in the structural brief.

What actually limits how big an aluminium door can be?

Every oversized leaf sits inside four ceilings at once, and the binding one is whichever you reach first.

• Hardware duty. Pivot pins, floor closers and lift-slide carriages carry the leaf. Each system publishes a maximum sash weight, and it is a hard limit.
• Sash structural depth. Minimal systems buy their sightline back with reinforcement and steel inserts, not with more aluminium on the face.
• Glass weight. This scales with area, so it rises fastest of the four as the leaf grows.
• The opening itself. Wind pressure on the panel and movement in the surrounding structure — the pair that most often forces a redesign.

Manufacturers publish the first three. The table below sets out the oversized systems in the range we fabricate at our Al Qusais facility, taken from each system house’s own technical data.

Altest figures from the manufacturer’s published system data (Uw declared to EN ISO 10077-2); Cortizo and LineaSlide 640 figures as published on our aluminium pivot doors and aluminium sliding doors pages. Maxima are configuration-specific and are not all achievable at once.

One thing stands out: the LineaPivot 470 and LineaDoor 8700 share a 300 kg leaf rating but differ by a metre in permitted height. Altest notes that its slim pivot-slide sashes typically reach 4 m and can be extended to 5 m with suitable reinforcement. Height is a reinforcement question. Weight is not.

How much does an oversized glass leaf weigh?

This is the calculation most specifications skip, and it is arithmetic anyone can do. Float glass has a density of about 2,500 kg/m³, which works out at 2.5 kg per square metre for every millimetre of glass thickness. A PVB laminate interlayer adds roughly 1.07 kg/m² per millimetre.

The following is a worked example with every assumption stated, not a product claim. Take two realistic double-glazed make-ups for a large door:

• Make-up A — 6 mm toughened / 20 mm cavity / 6 mm toughened, a 32 mm unit. Glass thickness 12 mm, so 30.0 kg/m².
• Make-up B — 6 mm + 6 mm laminated with a 1.52 mm PVB interlayer / 19 mm cavity / 6 mm toughened, a 38.5 mm unit inside a 45 mm rebate. Glass thickness 18 mm gives 45.0 kg/m², plus 1.6 kg/m² of interlayer: 46.6 kg/m².

Apply those to the LineaDoor 8700 at its catalogue maximum of 2.0 m × 5.0 m, an area of 10 m². Make-up A weighs 300 kg — exactly the system’s maximum sash weight, before a gram of aluminium sash is counted. Make-up B weighs 466 kg, some 55% over.

Turn the sum around and it gives the number worth specifying against. At 300 kg, Make-up B allows about 6.4 m² of glass; at 2.0 m wide, that is a leaf around 3.2 m high, and lower once the sash profile is deducted. The catalogue says 5 m. Laminated safety glass says 3.2 m. Both are true, and the second is the one that gets built.

The same arithmetic explains the lift-slide ratings. At 4.0 m × 6.0 m the LineaSlide 640 panel is 24 m², which in Make-up B weighs about 1,119 kg — just inside its 1,200 kg per-sash rating. That figure is not marketing. It is what makes a 24 m² laminated panel possible at all.

Why does the structure above the opening decide the door?

A door is a precision assembly installed into a building that moves. The tolerances of the two are not remotely the same, and nobody discovers this until the leaf starts to bind.

Dubai sets its structural serviceability limits in Administrative Resolution No. (37) of 2021, which amends the bylaw on building requirements and specifications. Article 55 states that “the maximum allowable deflection value after installing joints of slabs and beams must not exceed (L/480) up to (20) mm”, gives L/360 for primary horizontal elements under live load alone, and requires the façade design to be evaluated by a specialist consultant.

Those are reasonable limits for a structure. They are also an order of magnitude looser than a large door tolerates. Over a 6 m opening, L/480 permits 12.5 mm of deflection — fully code-compliant, and roughly four times what the door beneath it can absorb. Published master specifications for aluminium-framed sliding door systems restrict deflection above doors and windows to 1.6 mm, allowing 3 mm only where door operation is demonstrably unaffected, and require the header to be verified so that deflection under combined live and dead load stays below 3 mm.

The consequence belongs in the tender, not the snagging list: a local deflection limit over the door head has to be specified separately, because complying with the general structural limit does not deliver it. On a villa with a 6 m sliding opening beneath a first-floor slab, that means giving the structural engineer the door’s requirement at design stage and allowing a head detail with enough movement capacity to absorb what the slab does afterwards. Dead-load deflection occurring before the door is hung can often be taken up in the installation; creep afterwards cannot.

How do wind load and glass deflection change past 3 m?

Wind pressure acts on area, so a 24 m² sliding panel collects far more total load than the same system in a 2 m² window — though wind codes generally apply a lower pressure coefficient to large loaded areas, because peak gusts do not act uniformly across a big panel. That is a calculation for the façade engineer, not a rule of thumb.

What the specifier can control is the classification. European systems declare wind resistance to EN 12210, whose pressure classes run C1 to C5 at 400, 800, 1,200, 1,600 and 2,000 Pa, paired with a deflection letter. The Schüco systems on our aluminium windows page are published at wind load classes up to C5/B5. Asking for the wind class and the size it was tested at is the single most useful question on an oversized enquiry.

The glass has its own limit. EN 16612:2019 states that absent a specific requirement, pane deflection should be limited to span/65 or 50 mm, whichever is lower — so on a 3 m span the 50 mm cap binds before the ratio does. ASTM E1300 separately requires the edge support system to hold supported glass edges within L/175 of their length.

What does Dubai’s heat do to a six-metre aluminium track?

Aluminium moves. The 6063 alloy used for architectural extrusions has a coefficient of linear thermal expansion of about 23.4 × 10⁻⁶ per kelvin, which on a 6 m track works out at 0.14 mm of movement per degree Celsius.

Worked example, assumption stated: if a dark-finished profile runs 50 K hotter in summer sun than on the morning it was installed, that 6 m track grows by around 7 mm. It is happening horizontally rather than vertically, which is why expansion allowance at the jambs, correctly sized gaskets and a drainage path that stays open through the movement range matter more in the Gulf than in the climates these systems were developed for. It also makes finish a technical decision: the same profile in a light colour reaches a lower peak temperature and moves less.

Does oversized glazing still comply with Al Sa’fat?

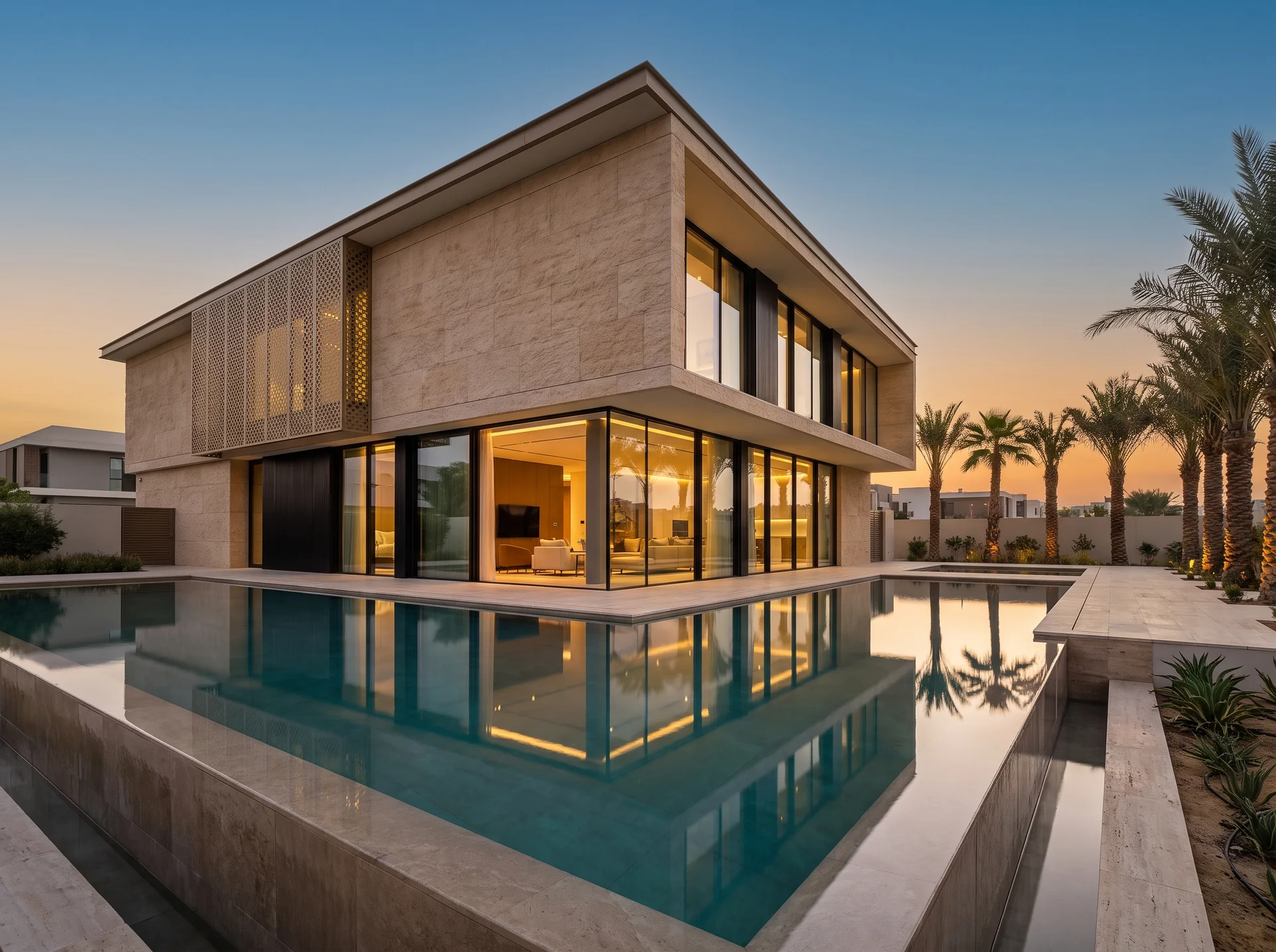

This is where ambition meets regulation. Dubai’s Al Sa’fat Green Building System caps residential window-to-wall ratio at 40% of gross wall area, and Silver Sa’fa is the mandatory minimum for new buildings. Within that band a villa’s glazing must meet a summer U-value of 2.1 W/m²K or better, a shading coefficient of 0.40 or lower, and — the constraint most often missed — a light transmittance of 0.40 or higher. We set out the full banded requirements in our guide to Al Sa’fat and Estidama glazing requirements.

A 40% cap does not prevent oversized doors; it governs where the glass goes. Concentrating the glazing budget into two or three large openings on the elevations that earn them, rather than spreading it thinly, is usually the better architectural and thermal outcome. The systems above reach Uw values from 0.9 W/m²K, so the frame is not the obstacle — the glass and the orientation are. External shading and a spectrally selective coating are what let a large opening hold a shading coefficient at or under 0.40 while still clearing the 0.40 light transmittance floor.

Frequently asked questions

How big can an aluminium pivot door actually be?

Published system maxima reach 2.0 m × 5.0 m on the Altest LineaDoor 8700, with a 300 kg maximum sash weight. In practice the weight ceiling binds first: a laminated double-glazed unit at around 46.6 kg/m² reaches 300 kg at roughly 6.4 m², so a 2 m wide leaf lands nearer 3.2 m high. Cortizo Millennium Plus Pivot is published to 3 m+ in centre-pivot configuration with leaves up to 1.6 m wide.

Why do oversized doors need a pivot rather than hinges?

A pivot leaf turns on pins at the head and threshold, transferring load into the floor and structure rather than into a hinge line on one edge. Hinges cannot mechanically support the weight and leverage of a leaf much above 2.4 m. The pivot axis typically sits between one third and one half of the sash width, which also shortens the effective lever arm.

What deflection limit should I give my structural engineer?

Under 3 mm across the door head under combined live and dead load, and ideally 1.6 mm. Dubai’s general limit of L/480 up to 20 mm for slabs and beams is code-compliant but far too loose for a large door — over a 6 m opening it permits 12.5 mm. State the door’s requirement explicitly at design stage.

Does a 6 m sliding door still meet Al Sa’fat?

Yes, provided the villa stays within the 40% residential window-to-wall cap and the glazing meets the Silver band: summer U-value 2.1 W/m²K or better, shading coefficient 0.40 or lower, light transmittance 0.40 or higher. Systems such as the Altest LineaSlide 640 are published at Uw ≥0.9 W/m²K, so compliance is driven by the glass specification and shading rather than the frame.

How much does a large glass panel weigh?

Float glass weighs about 2.5 kg per square metre per millimetre of thickness. A 32 mm double-glazed unit of 6 mm and 6 mm panes is 30 kg/m²; adding a laminated outer leaf takes it to roughly 46.6 kg/m². A 4 m × 6 m laminated panel therefore weighs around 1,119 kg — which is why lift-slide hardware for that size is rated at 1,200 kg per sash.

Does going oversized cost thermal performance?

Not inherently. The oversized systems here are published from Uw 0.9 W/m²K, and a larger pane has proportionally less frame perimeter, so the glass rather than the frame increasingly governs the whole-unit figure. What changes is solar gain: more glass area means more heat admitted, which is a glass and shading question rather than a frame one.

Specify the opening, not just the door

Oversized aluminium glazing is not a product decision made late in a project. The leaf weight sets the hardware, the hardware sets the sash, the wind class sets the reinforcement, and the deflection of the slab above decides whether any of it works. All four are settled while the structure is still on paper.

If your brief calls for glazing beyond 3 m, we will review the opening, the structural allowances and the glazing make-up against the systems that can carry it, and set out what needs to go into the structural brief. Compare the opening types first in our guide to sliding, pivot and casement performance, then talk to our specification team.

Sources: Altest published system data for LineaDoor 8700, LineaPivot 470 and BFS70; Cortizo and LineaSlide 640 data as published on laa.ae; Dubai Administrative Resolution No. (37) of 2021, Article 55; ASTM E1300; EN 16612:2019; EN 12210; Al Sa’fat Green Building System, 2nd edition (January 2023), Article 501. Glass weight, leaf weight and thermal movement figures are worked examples calculated from stated assumptions using a float glass density of 2,500 kg/m³, a PVB density of 1.07 kg/L and a 6063 aluminium expansion coefficient of 23.4 × 10⁻⁶/K, and are not product claims.
