Yes, dark aluminium window frames work in Dubai, but they carry a real thermal cost that has to be designed for. It is not mainly a cost on the DEWA bill. Using ASHRAE’s sol-air method with Dubai’s design conditions, we estimate that a dark frame on a west elevation reaches roughly 78 °C at the design-day peak, against about 61 °C for a light one. That is above the +70 °C that the European technical-approval guideline for thermally broken profiles assumes for facades. The extra heat shows up mainly as movement, stress on the polyamide thermal break, and wear on the coating. A dark frame is a sound choice when the system, the thermal break and the powder class are specified for that temperature.
This guide sets out how hot a dark aluminium frame actually gets in a Gulf summer, what that heat does and doesn’t do, and how to specify anthracite, bronze or black so the finish stays sound. It is written for the villa owner who has chosen a dark colour for how it looks, and for the architect who has to make that choice survive a west elevation.
How hot does a dark aluminium frame get in Dubai?
Hotter than the air, and considerably hotter than a light frame beside it. The standard way to estimate it is the sol-air temperature. ASHRAE defines it as the outdoor air temperature that would give the same heat input to a surface as the real combination of sunshine, sky radiation and air. It depends on the air temperature, the sunlight falling on the surface, and the ratio of the surface’s solar absorptance to its outside heat-transfer coefficient (α/ho).
ASHRAE’s cooling-load method uses two values for that ratio: 0.15 (h·ft²·°F/Btu) for a light-coloured surface, and 0.30 as “the usual maximum value … for a dark-colored surface or any surface for which the permanent lightness cannot be reliably anticipated”. In SI units that is 0.026 and 0.053 m²K/W. The rest of the calculation uses Dubai data:
- Air temperature: 43.5 °C, the 0.4% cooling design dry-bulb for Dubai International in the 2025 ASHRAE Handbook — Fundamentals climatic data. That is the level a design is sized to, not the 46.4 °C annual extreme.
- Sunlight: about 660 W/m² on a west-facing vertical surface at 15:00 solar time in mid-June, and about 940 W/m² on a horizontal surface at solar noon. These are our calculations using the ASHRAE clear-sky model and the June clear-sky optical depths published with the same Dubai design data (τb 0.721, τd 1.493).
- Long-wave correction: zero for vertical surfaces and 3.9 K for horizontal ones, as in ASHRAE’s method.
We combine the design air temperature with the peak sunlight, which makes this a deliberately conservative design-day estimate rather than a typical afternoon:
| Surface (Dubai design day) | Light frame (α/ho 0.026) | Dark frame (α/ho 0.053) | ETAG 002-3 design limit for the thermal barrier |
|---|---|---|---|
| West-facing frame, 15:00 solar time | ≈ 61 °C | ≈ 78 °C | +70 °C (facades) |
| Horizontal face (sill top, transom, pergola beam), solar noon | ≈ 64 °C | ≈ 89 °C | +80 °C (roofs) |
Sol-air temperature closely approximates the surface temperature of a thin metal skin that passes little heat inwards, which is what the outer shell of a thermally broken profile is. Two points are easy to miss. First, still air raises these figures, because less heat is carried away. Second, ASHRAE’s wording matters in desert conditions: a light frame under a film of dust behaves more like a mid-tone frame than its RAL card suggests.
Why the thermal break is where a dark frame is tested
A thermally broken aluminium profile is two aluminium shells joined by polyamide strips, typically PA66 with 25% glass fibre, crimped into both shells. In a Dubai summer the inner shell sits close to the room setpoint while the outer shell follows the sun. Each shell expands at the rate given for aluminium in EN 1999-1-1 (Eurocode 9): 23 × 10−6 per K. So a temperature difference between the shells becomes a length difference, and the polyamide has to carry it as shear.
A worked example, assuming the inner shell stays at a 24 °C setpoint and the outer shell reaches the design-day temperatures above:
| Member length | Light frame: outer/inner difference 37 K | Dark frame: outer/inner difference 54 K |
|---|---|---|
| 1.2 m window jamb | 1.0 mm | 1.5 mm |
| 3.0 m sliding-door frame | 2.6 mm | 3.7 mm |
That is how far the outer shell tries to grow relative to the inner shell it is locked to. The shells cannot slide freely past each other, so the section bows, like a bimetallic strip. The US National Association of Architectural Metal Manufacturers calls the effect “thermal bow” in its technical note HMMA-810 TN02-17. It lists door colour first among the factors that decide its severity. The symptoms it describes are tight clearances and difficulty latching, usually present only while the sun is on the face. Its first recommended remedy is a lighter colour, and it advises that in extreme cases blocking the sun “may be the only solution”.
This is why the design temperature of the thermal break matters. The European Organisation for Technical Approvals’ ETAG 002 Part 3, which covers profiles with a thermal barrier, sets the extreme barrier temperatures at −20 °C and +70 °C for facades, +80 °C for roofs. It tests shear and tensile strength at the high temperature. It also states that “for local climatic conditions temperatures outside these limits can be considered”. Dubai is such a case. A dark west-facing frame exceeds the facade figure on a design day, and a dark horizontal member exceeds even the roof figure. A light frame stays inside both.
None of this means a dark frame fails. It means the system should be one whose thermal break is engineered for high sustained temperatures, and that large dark sliding and pivot leaves need their hardware tolerances set with thermal bow in mind. Some system houses address this directly. Alumil’s SMARTIA S77, for example, which appears in our aluminium windows range, uses 40 mm anti-distortion polyamides.
Does a dark frame raise your DEWA bill?
Only slightly. This is where the dark-frame question is most often overstated. Heat conducted through a frame is roughly its frame U-value (Uf) multiplied by the difference between the sol-air temperature and the room temperature.
A worked example, with every assumption stated: a thermally broken frame at Uf 2.0 W/m²K, room at 24 °C, west elevation at the design-day peak. A dark frame then conducts about 35 W more per square metre of frame than a light one (2.0 × the 17 K sol-air difference). Glazing that just meets the Al Sa’fat villa limit of shading coefficient 0.40, about SHGC 0.35, admits roughly 230 W per square metre of glass in the same sun. If the frame is 20% of the window area, the colour choice changes peak solar-related heat gain through that window by around 4%.

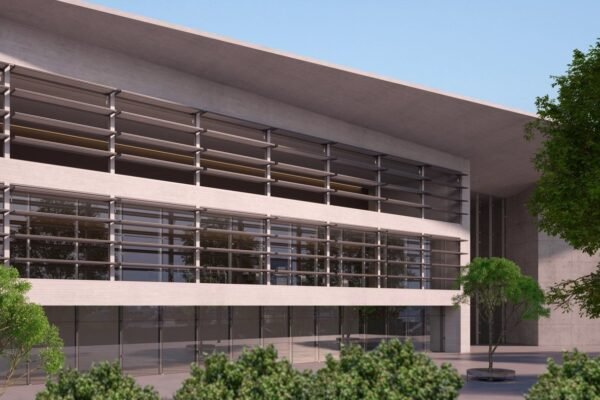

So colour is not the cooling-bill lever: the glass is. Our comparison of solar-control glazing and external shading covers that decision. On a non-thermally-broken frame the conducted share is far larger. That is a reason to insist on a thermal break whatever the colour, as our thermal break specification guide explains.
Which powder coating class does a dark colour need?

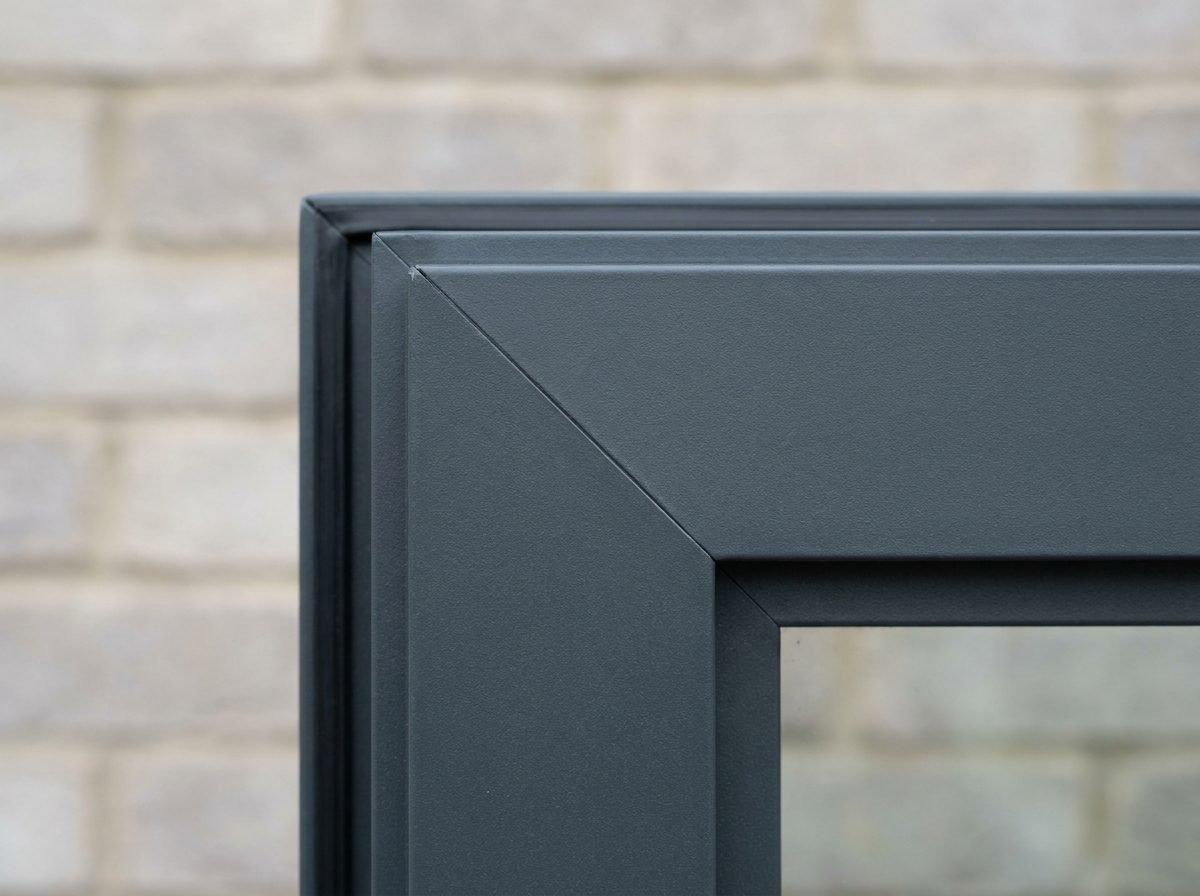

At least Qualicoat Class 2 on sun-exposed elevations, and Class 3 where re-coating would be disruptive. A dark finish faces two problems at once: higher service temperature, and the fact that any fading or chalking shows far more on anthracite than on white. The Qualicoat classes are defined by natural weathering in Florida:
| Qualicoat class | Florida exposure | Minimum gloss retention |
|---|---|---|
| Class 1 (standard) | 1 year | 50% after 12 months |
| Class 2 (super-durable) | 3 years | 75% / 60% / 50% after 1 / 2 / 3 years |
| Class 3 (hyper-durable) | 10 years | 80% / 70% / 60% / 50% after 3 / 5 / 7 / 10 years |
A newer option is infrared-reflective (“cool”) dark powder. Pigments like these reflect the invisible near-infrared part of sunlight while still looking dark. Axalta states that its Alesta Cool range can improve total solar reflectance by up to 20% and reduce surface temperature by up to 20%, and that the range is Qualicoat Class 1 certified. That is worth having, but check the durability class alongside the reflectance: a cooler Class 1 finish is not automatically a better choice than a Class 2 or Class 3 one on a west-facing villa.
LAA coats through a Qualicoat-certified partner across the full RAL range and custom colours, in matt, satin and gloss. The colour options page shows the range, and our powder coating specification guide covers pre-treatment, Seaside certification and colour matching.
How do you specify a dark aluminium frame for a Dubai villa?
Choose the colour by elevation and element, not once for the whole house. The frames that see the most sun take the most heat, so that is where the specification needs the most care:
| Element | Exposure | What to specify for a dark finish |
|---|---|---|
| North or deeply shaded windows | Little direct sun | Dark finishes perform essentially as light ones. Standard specification. |
| East and south windows | Morning or high sun | Qualicoat Class 2 minimum, thermally broken system with published thermal-barrier data. |
| West windows and large sliding or pivot doors | Low afternoon sun at the day’s peak air temperature | Class 2 or 3, a system with a high-temperature or anti-distortion thermal break, hardware tolerances set for thermal bow, and ideally overhang or screening. |
| Horizontal members, pergola beams, copings | Full overhead sun | The hottest surfaces on the building. Consider a lighter tone or IR-reflective dark powder, and Class 3. |
Four practical points complete the specification:
- Ask for the thermal-barrier test data. Profiles with a structural thermal break are assessed to EN 14024. Ask what high test temperature the system was tested at, and match it to the elevation.
- Size the big leaves with movement in mind. A 3 m dark sliding or pivot door leaf moves measurably between morning and late afternoon. Lock keeps, clearances and seals should allow for it. Our aluminium sliding doors are specified system by system for exactly these spans.
- Consider shade before colour. An overhang or screen that keeps direct sun off a dark west-facing door removes the driving heat input at source. That is NAAMM’s own last-resort recommendation, and it also cuts solar gain through the glass.
- Keep dark finishes clean. Dust and irrigation residue sit visibly on anthracite and bronze. Our cleaning and maintenance guide sets out a regime that keeps the coating guarantee valid.
Anodised dark bronze and black are a legitimate alternative. The colour is part of the converted metal surface rather than an organic film, so there is nothing to chalk. The physics of heat is the same, though: an anodised dark frame absorbs sunlight much like a painted one, and the thermal-break considerations above apply unchanged.
The bottom line
A dark aluminium frame in Dubai is a specification decision, not just a colour. The heat is real: on our design-day estimate, a dark west-facing frame reaches roughly 78 °C and a dark horizontal member close to 90 °C. Its effect on cooling energy is small, but its effect on the thermal break, the hardware and the coating is significant. Specify a thermally broken system tested for those temperatures, a Qualicoat Class 2 or 3 powder, and shade on the elevations that need it, and anthracite, bronze or black will hold its line and colour for decades.
If you are weighing a dark finish for a villa or a project, we can review the elevations, the systems and the finish together. That starts with a specification conversation, and where it helps, a site survey.
Frequently asked questions
Do black aluminium windows get too hot in Dubai?
They get hot, not dangerously so for the frame when correctly specified. Using ASHRAE’s sol-air method and Dubai’s 43.5 °C design temperature, a dark west-facing frame reaches roughly 78 °C at the design-day peak, against about 61 °C for a light one. The frame surface can be too hot to hold comfortably, and the system and coating need to be rated for that temperature.
Do dark window frames increase air-conditioning costs?
Only marginally. In a worked example with a thermally broken frame at Uf 2.0 W/m²K on a west elevation, choosing dark rather than light adds around 4% to the peak solar-related heat gain through the window. The glass admits far more heat than the frame conducts, so glazing specification and shading are the levers that move a DEWA bill.
Why do dark aluminium doors stick in the afternoon?
Usually because of thermal bow. The sunlit outer shell of a thermally broken profile expands more than the cooled inner shell, and the section bows like a bimetallic strip. The effect typically appears on sunny afternoons and disappears overnight. Lighter colours, shading, and systems with anti-distortion thermal breaks all reduce it.
Which Qualicoat class should I specify for anthracite frames in the UAE?
Class 2 as a minimum on sun-exposed elevations, and Class 3 for west elevations, pergolas and anything costly to re-coat. Class 1 is tested for one year of Florida exposure, Class 2 for three and Class 3 for ten. Add Qualicoat Seaside for coastal sites.
Is anodised dark bronze cooler than powder-coated anthracite?
Not in any meaningful way. Surface temperature follows solar absorptance, and dark anodised and dark powder-coated finishes both absorb most of the sunlight that reaches them. Anodising’s advantage is durability of appearance: the colour is in the metal surface, so it cannot chalk or peel. It cannot be touched up, though, so damage means replacing or re-anodising the component.
Are there dark powder coatings that stay cooler?
Yes. Infrared-reflective (“cool”) powders reflect near-infrared sunlight while still looking dark. Axalta states its Alesta Cool range can improve total solar reflectance by up to 20%. Check the Qualicoat class as well, because a cool finish certified only to Class 1 may not be the right trade on a west elevation.
Sources
- ASHRAE, Radiant Time Series (RTS) Method — sol-air temperature definition, α/ho 0.15 (light) and 0.30 (dark), long-wave correction 0 °F vertical / 7 °F horizontal.
- ASHRAE Handbook — Fundamentals (2025), climatic design conditions for Dubai International (WMO 411940): 0.4% cooling dry-bulb 43.5 °C, extreme annual 46.4 °C, monthly clear-sky optical depths. Via climate.onebuilding.org (TMYx 2011–2025 statistics file).
- EOTA, ETAG 002 Part 3: Systems incorporating profiles with a thermal barrier (March 2002) — §4.4.4.1 barrier temperatures; test temperatures −20 / +23 / +70 or +80 °C.
- NAAMM, HMMA-810 TN02-17 Thermal Bow.
- EN 1999-1-1 (Eurocode 9: Design of aluminium structures), §3.2.5 — coefficient of linear thermal expansion 23 × 10−6/K.
- Qualicoat UK & Ireland, Why Florida test architectural powder coating — Class 1, 2 and 3 gloss-retention requirements.
- Axalta, Alesta Cool — manufacturer’s stated TSR and surface-temperature figures.
- Al Sa’fat – Dubai Green Building System, 2nd edition (January 2023), Table 501.01(2) — villa glazing SC 0.40 max (Silver Sa’fa).
